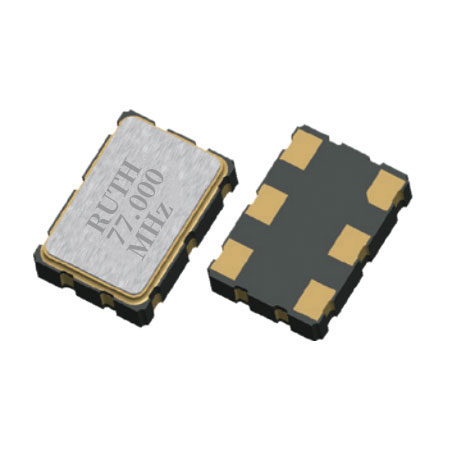

*Small sizeSMD Voltage Controlled Oscillator (VCXO)，3.2×2.5×0.95mm
*High precision, high reliability, wide temperature range, low jitter, low power consumption
*Frequency:30.00MHz-180MHZ
*Low voltage operation and low current consumption
*Servers, testing equipment, radar detection, base stations, and industrial equipment
◙ Specifications
|
Type |
压控振荡器(VCXO) |
|
频率范围 |
Frequency Range |
30～180MHZ |
|
输出类型 |
Output Type |
CMOS |
|
输出负载 |
Output Load |
15pF, or specify |
|
振荡模式 |
Oscillation Mode |
Fundamental |
|
供电电压 |
Supply Voltage(VDD) |
3.3v |
|
输入电压 |
Voltage V0l(Max)/ V0h (Mn) |
0.1VDD/0.9 VDD |
|
工作温度范围 |
Operating Temperature Range |
-10 - + 70°C,-40- + 85°C ,or specify |
|
储存温度范围 |
St0rge Temperature Range |
-55～+125°C |
|
启动时间 |
Start-up Time |
10mS Max |
|
上/下沿时间 |
RISE(tr)/Fall (TF) Time |
5nS.Max |
|
供电电流 |
Supply Current |
60mA Max |
|
输入对称性 |
Symmetry |
45～55% |
|
[敏感词]牵引范围 |
Abs0luite Pulling Range(APR) |
±50ppmMin,or specify |
|
额定控制电压 |
Nominal C0ntrge Voltage |
0.5VDD |
|
线性度 |
Linearity |
10％Max |
|
相位抖动 |
Phase JITTER(12kKHZ～20MHZ) |
1pSMax |

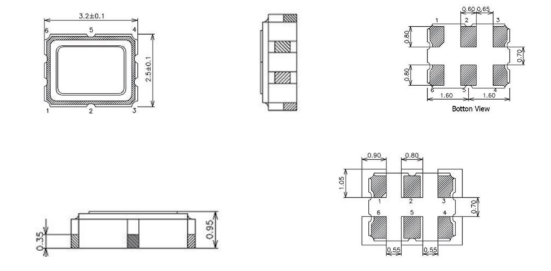

◙ Dimension(Unit:mm)
