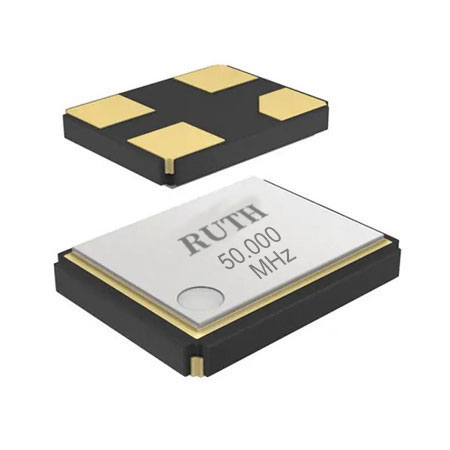

*Small sizeSMD temperature compensated oscillator (TCXO)，5.0×3.209mm
*High precision, high reliability, wide temperature range, low jitter, low power consumption
*Frequency:20.00MHz-120MHZ
*Low voltage operation and low current consumption
*Servers, testing equipment, radar detection, base stations, and industrial equipment
◙ Specifications
|
Type |
温补振荡器(TCXO) |
|
调整频差 |
Frequency Range |
20MHz～120MHZ |
|
|
输出类型 |
Output Type |
Clipped Sinew ave |
|
|
输出负载 |
Output Load |
10K Ω//10PF |
|
|
振荡模式 |
Oscillation Mode |
Fundamental |
|
|
供电电压 |
Supply Voltage |
1.8～3.3v |
|
|
输入电压 |
Clipped Sinew ave Output Voltage |
0.8vp-ptypical |
|
|
频率偏移稳定性 |
Frequency Stability |
Vs,Temperature(-30 - +85°C ) |
±0.5/±2.0PPM |
|
Vs,Load(Load Varies±10% |
±0.2PPMmax |
||
|
Vs,Supply Voltage (VCC=typical±0.1V |
±0.2PPMmax |
||
|
频率容限 |
Frequency T0leance |
at25°C after2Reflovs with Typical Auo Frequency C0ntrol pin |
±2.5PPMmax |
|
频率漂移 |
Slope of Frequency Drift |
±0.1ppm/ C Typical;±0.5ppm/ C Max |
|
|
储存温度范围 |
St0rge Temperature Range |
-40～+85° C |
|
|
自动频率控制范围 |
Auto Frequency Control(AFC)Range |
±7 -±16ppm（1.4±1） |
|
|
电源电流 |
Supply Current |
2.0mA Max |
|
|
启动时间 |
Start-up Time |
5me MAX |
|
|
年老化 |
Aging(at25°C) |
±1ppm/year Max. |
|

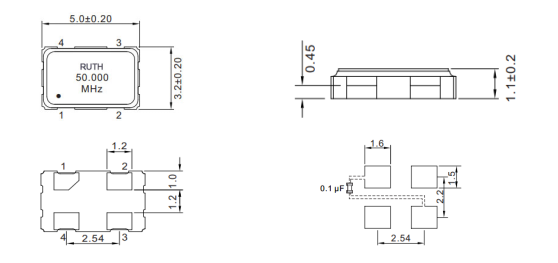

◙ Dimension(Unit:mm)
