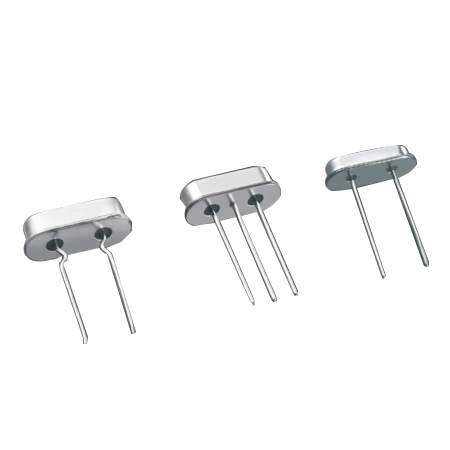

Home page » Product » Direct insertion crystal resonator (DIP) » HC-49S/HC-49SS
*High precision, low jitter, low power consumption
*Frequency:3.57954MHz-50MHZ
*Server, set-top box remote control equipment, and industrial equipment
*conform toRoHS lead-free
◙ Specifications
|
Type |
HC-49S HC-49SS |
|
频率范围 |
Frequency Range |
83.579545~50.000MHz 888 |
|
振动模式 |
Vibration Mode |
ATCUT,Fundamental |
|
调整平差（ppm） |
Frequency Tolerance(at25℃) |
±10≈±50ppm |
|
温度平差（ppm） |
Frequency Stability Over Temperature Range |
See Table 1 |
|
储存温度（℃） |
Storage Temperature Range |
-40℃-+85℃ |
|
等效电阻（Ω） |
Equivalent Series Resistance |
See Table 2 |
|
静态电容 (PF) |
Shunt Capacitance |
5.0pFMax |
|
负载电容（PF） |
Load Capacitance |
5-50pF or Series Resonance |
|
绝缘电阻 (ꓟΩ) |
Insulation Resistance |
≥500MΩ//DC100V ±10V |
|
激励功率（µ W） |
Drive Level |
0.01uW-1000uW |
|
老化率（ppm/y） |
Aging |
±2ppm/year, ±3ppm/year, ±5ppm/year |

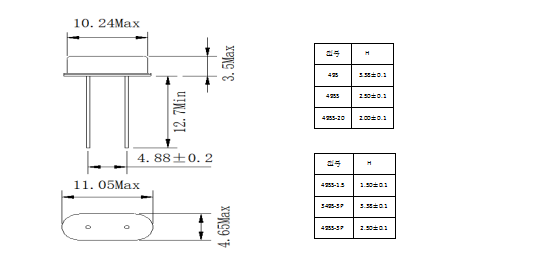

◙ Dimension(Unit:mm)
