*Small sizeSMD crystal oscillator，2.0×1.6×0.7mm
*High precision, high reliability, wide temperature range, low jitter, low power consumption
*Frequency:32.768KHz-160MHZ
*Low voltage operation and low current consumption
*Servers, testing equipment, radar detection, base stations, and industrial facilities
◙ Specifications
|
Type |
有源晶振 (OSC) Crystal Oscillator |
|
调整频差（ppm） |
Frequency Tolerance(at25℃) |
±100ppm,±50ppm,±25ppm Max |
|
|
工作温度（℃） |
Operating Temperature |
0℃ - + 70℃or - 40℃ - + 85℃ |
|
|
储存温度（℃） |
Storage Temperature Range |
-40℃ - + 85℃ |
|
|
电源压力（VDD） |
Supply Voltage (VDD ) |
5.0VDC ± 5％,3.3vDC ±5％ |
|
|
高电平 |
Higher Potentiometer |
W/TTL load |
2.4vDC Min |
|
W/HCMDS load |
90％ of VDC Min |
||
|
低电平 |
Lower Potentiometer |
W/TTL load |
0.4vDC Max |
|
W/HCMDS load |
10％ of VDC Max |
||
|
频率偏移 /Pin 1控制电压 |
Frequency deviation /Pin 1control Voltage |
2.5VDC ±2.0VDC |
±10,±30,±50,±100ppm Min |
|
2.5VDC ±2.0VDC |
±10,±30,±50,±100,±150ppm Min |
||
|
1.65vDC ±1.65vDC (or ±1.5vDC) |
|||
|
线形度 |
Linearity |
±20,±15,±10,±5％(optional) |
|
|
负载驱动能力 |
Load Drive Capability |
10TTL load 15pF HCMOS load |
|
|
老化率（ppm/y） |
Aging |
±3ppm/year Max |
|

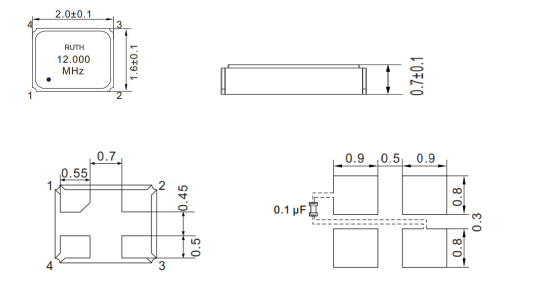

◙ Dimension(Unit:mm)
