◙ Specifications
|
Type |
49SS-7.49SS-7/SMD7 & 49SS-8.49ss-8/SMD |
|
Stability |
10 |
25 |
40 |
℃ |
||
|
Tum0ver Frequency |
F0 |
FC |
||||
|
Frequency Temperature C0efflcient |
FTC |
0.032 |
Ppm/℃ |
|||
|
Frequency Aging |
Abs0lute Value during the First Year |
LFAL |
≤10 |
Ppm/yr |
||
|
DClnsulati0n Resistance between Any Two pins |
1.0 |
MΩ |
||||
|
RF Equivalent RL C M0del |
M0tinal Resistance |
RM |
12.00 |
19 |
Ω |
|
|
M0tinallndu CTANCE |
LM |
183.8 |
µH |
|||
|
M0tional Capacitance |
CM |
0.733 |
FF |
|||
|
Pin1 t0 PIN 2 Static Capacitance |
C0 |
2.23 |
PF |
|||

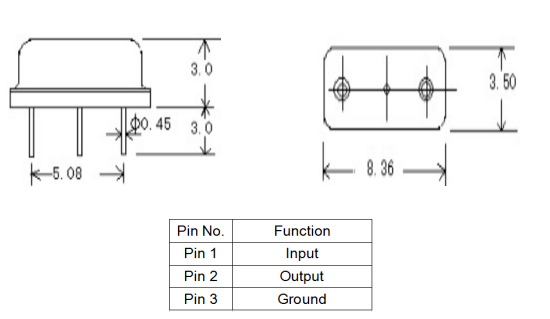

◙ Dimension(Unit:mm)
